CS aerotherm brings to you our very own cyclothermic Tunnel Oven. It can be either used as an independent unit or can be integrated with an automated production line. It caters to large bakeries and production lines. Being a universal oven, it can be used for continuous baking of different types of bread and pastries at temperatures that can go as high as 320°C. It boasts of an extremely safe operation at high temperatures with it's foolproof safety mechanism. It is well equipped with high quality insulation and ensures better efficiency. Our tunnel oven is loaded with an automatic drought regulation mechanism that leads to energy saving. With it’s unique forced air circulation system in the baking chamber, it assures you of a better heat transmission that is highly recommended for products like tin bread and rusk.

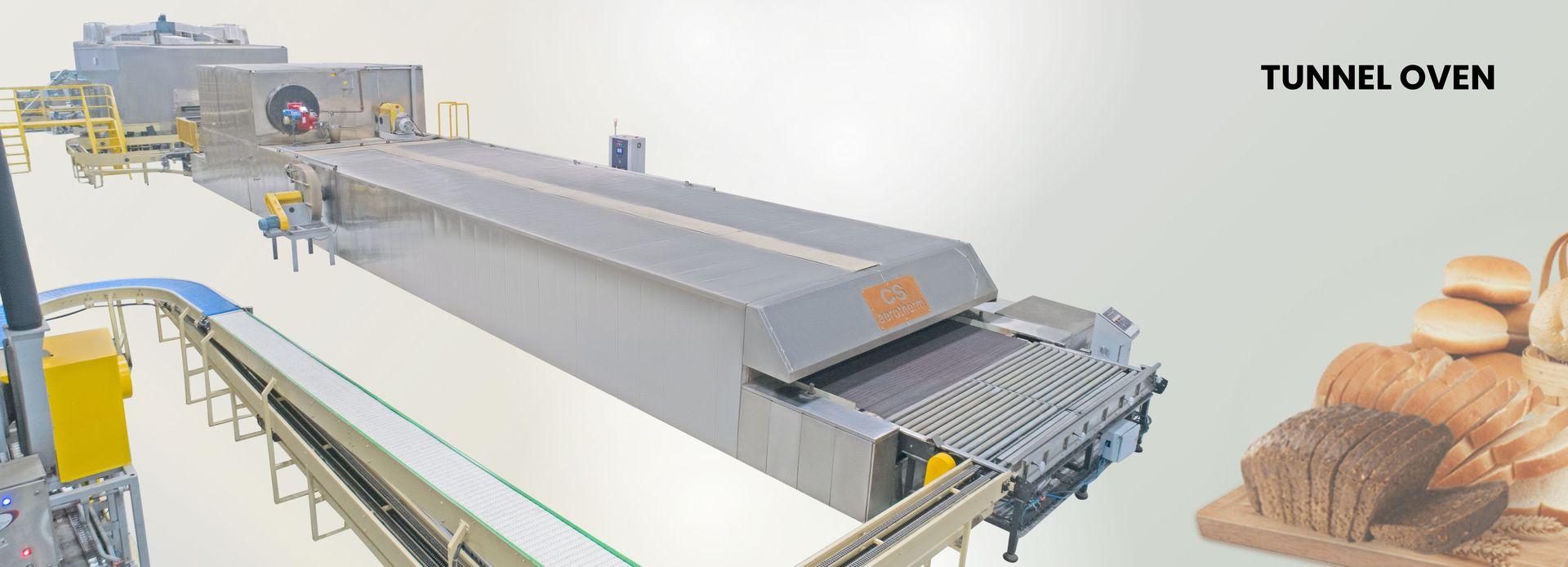

Cyclothermic Tunnel Oven
The Cyclothermic Tunnel Oven by CS aerotherm is an advanced baking solution designed to enhance the efficiency and quality of large-scale baking operations. Known for its robust construction and state-of-the-art technology, this tunnel oven is ideal for a wide range of baked goods, from breads and pastries to cookies and cakes.
which ensures uniform heat distribution across the baking chamber. This system circulates hot air efficiently, providing consistent baking results and optimal product quality.
CS Tunnel Oven
Tunnel Oven ensures uniform heat distribution across the baking chamber. This system circulates hot air efficiently, providing consistent baking results and optimal product quality.
Advantages from CS Tunnel Ovens
Specifications of Tunnel Oven
Single Burner Tunnel Ovens
Length of the Oven (m / inches) | Total Length (m / inches) | Total Width (m / inches) | Total Height (m / inches) | Area (m2 / inches2) | Input Power (KW / HP) | Input Power (KW / HP) |
12 / 473 | 15.00 / 591 | 4.00 / 158 | 3 / 118 | 36 / 55814 | 11 / 15 | 445 |
15 / 591 | 18.00 / 710 | 4.00 / 158 | 3 / 118 | 48 / 69738 | 11 / 15 | 556 |
18 / 709 | 21.00 / 826 | 4.00 / 158 | 3 / 118 | 54 / 83660 | 15 / 20 | 668 |
21 / 827 | 24.00 / 945 | 4.00 / 158 | 3 / 118 | 63 / 9786 | 15 / 20 | 779 |
Double Burner Tunnel Ovens
Length of the Oven (m / inches) | Total Length (m / inches) | Total Width (m / inches) | Total Height (m / inches) | Area (m2 / inches2) | Input Power (KW / HP) | Input Power (KW / HP) |
24 / 945 | 27 / 1062 | 4.00 / 159 | 3 / 118 | 72 / 111600 | 18 / 25 | 890 |
27 / 1062 | 30 / 1182 | 4.00 / 159 | 3 / 118 | 81 / 125350 | 20 / 27 | 1001 |
30 / 1182 | 33 / 1299 | 4.00 / 159 | 3 / 118 | 90 / 139500 | 20 / 27 | 1112 |
33 / 1300 | 36 / 1420 | 4.00 / 159 | 3 / 118 | 99 / 153400 | 23 / 31 | 1224 |
36 / 1417 | 39 / 1535 | 4.00 / 159 | 3 / 118 | 108 / 167250 | 23 / 31 | 1280 |
