A Double Trolley Proofer is a specialized piece of equipment commonly used in bakeries or food production facilities to create an optimal environment for the fermentation or proofing of dough. Its primary function is to provide controlled conditions of temperature and humidity to promote the rising or fermentation process of dough before baking. The main purpose of the double trolley proofer is to create an ideal environment for dough fermentation or proofing. It enables yeast activity in the dough, allowing it to rise, develop flavor, and achieve the desired texture before baking.
Double Trolley Proofer is an essential component in bakery operations, providing controlled environments for dough fermentation or proofing. It plays a crucial role in ensuring that the dough rises properly, develops flavors, and achieves the desired texture before entering the baking process, ultimately contributing to the quality and consistency of baked goods.

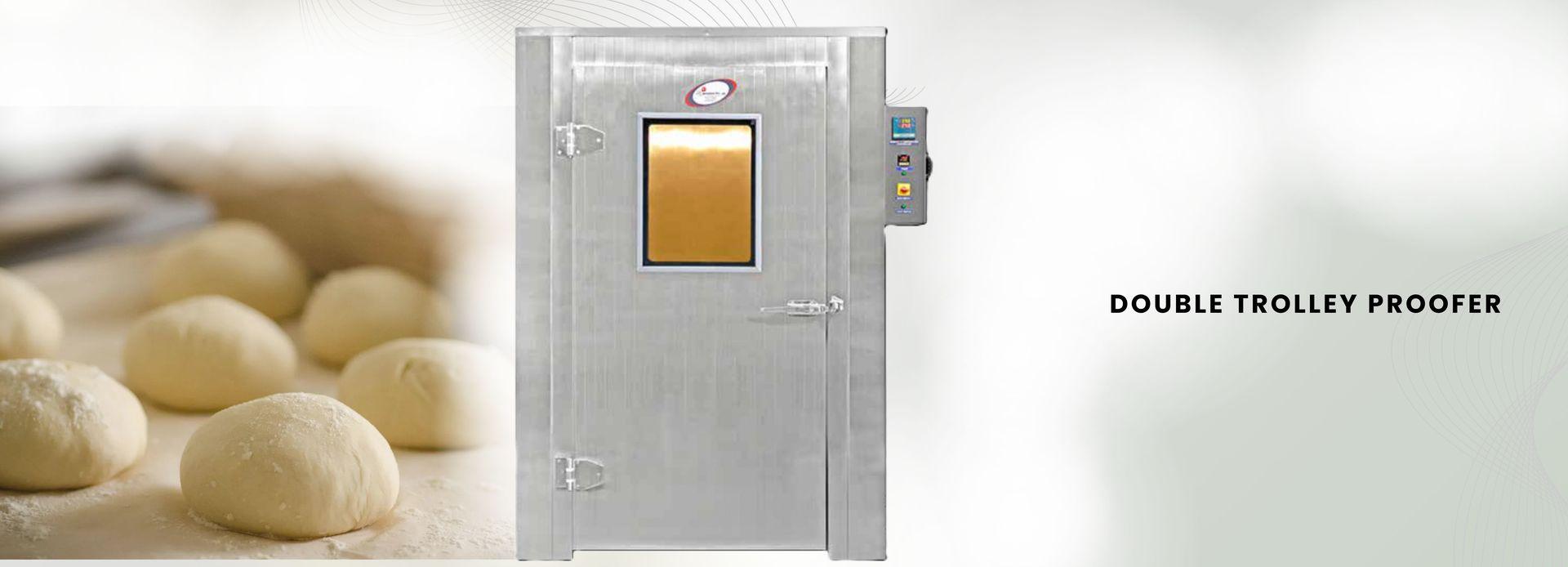

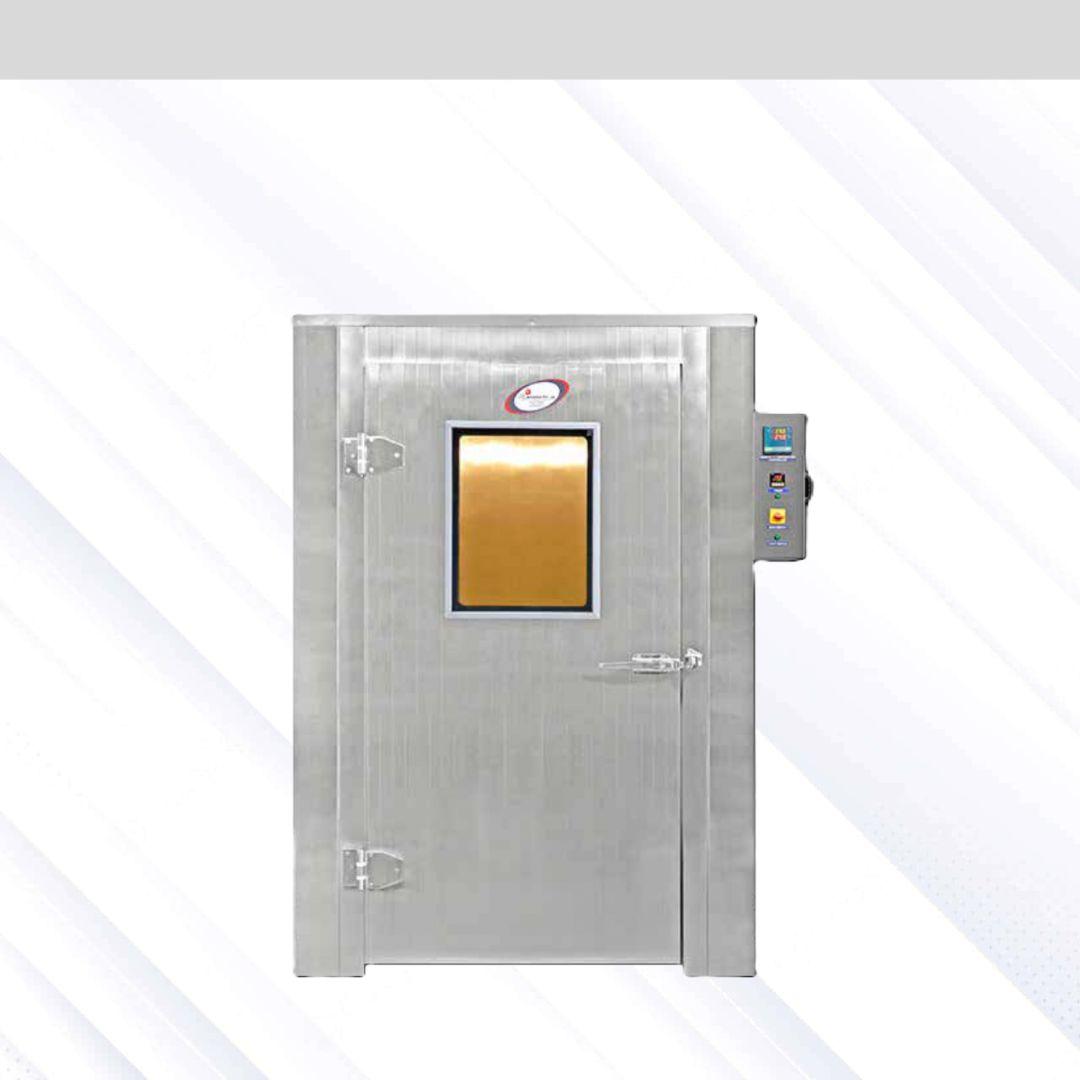

Double Trolley Proofer
At CS aerotherm, we believe in helping our customers at every step of baking. We bring to you our bakery proofer which will help you in proofing and resting the dough at optimum temperature. We understand how crucial proofing the dough is. Be assured you will always get the perfect risen dough ready to be baked.
Key Features Include:
Production Capacity details per hour*
| Model | Production | Capacity |
| B-700PC | Bread (400 g) in No.s / Kgs | 480 / 192 |
| B-700PC | Bun (45 g) in No.s / Kgs | 1045 / 47 |
B-800PC | Bread (400 g) in No.s / Kgs | 720 / 288 |
B-800PC | Bun (45 g) in No.s / Kgs | 1568 / 288 |
B-900PC | Bread (400 g) in No.s / Kgs | 1008 / 403 |
B-900PC | Bun (45 g) in No.s / Kgs | 2016 / 91 |
B-1100PC | Bread (400 g) in No.s / Kgs | 1260 / 504 |
B-1100PC | Bun (45 g) in No.s / Kgs | 2940 / 132 |
* Bread requires 90 minutes for proofing and Bun requires 70 minutes for proofing. Proofing time will vary based on recipes.
B-700PC Proofer Specifications
Standard Tray Size in mm / inches is 450 x 450 / 18 x 18
Details | Specifications |
Model | B-700PC |
Trolley Size (W x D x H) in mm / inches | 510 x 450 x 1580 / 20 x 18 x 63 |
Maximum Temperature (°C / °F) | 50 / 122 |
Maximum Humidity (RH in % | 95 |
Installed Power (KW / HP) | 2.6 / 3.5 |
Voltage and Phase (KW / HP)ts / Phase / Hertz) | 230 / 1 / 50 |
External Dimensions (W x D x H) in mm / inches | 1250 x 1500 x 2000 / 50 x 59 x 79 |
Weight (Kgs) | 200 |
B-800PC Proofer Specifications
Details | Specifications |
Model | B-800PC |
Trolley Size (W x D x H) in mm / inches | 700 x 520 x 1580 / 28 x 20.5 x 63 |
Maximum Temperature (°C / °F) | 50 / 122 |
Maximum Humidity (RH in % | 95 |
Installed Power (KW / HP) | 2.6 / 3.5 |
Voltage and Phase (KW / HP)ts / Phase / Hertz) | 230 / 1 / 50 |
External Dimensions (W x D x H) in mm / inches | 1250 x 1500 x 2000 / 50 x 59 x 79 |
Weight (Kgs) | 250 |
B-900PC Proofer Specifications
Standard Tray Size in mm / inches is 450 x 450 / 18 x 18
Details | Specifications |
Model | B-900PC |
Trolley Size (W x D x H) in mm / inches | 700 x 520 x 1907 / 28 x 20.5 x 75 |
Maximum Temperature (°C / °F) | 50 / 122 |
Maximum Humidity (RH in % | 95 |
Installed Power (KW / HP) | 2.6 / 3.5 |
Voltage and Phase (KW / HP)ts / Phase / Hertz) | 230 / 1 / 50 |
External Dimensions (W x D x H) in mm / inches | 1250 x 1600 x 2200 / 50 x 63 x 87 |
Weight (Kgs) | 300 |
B-1100PC Proofer Specifications
Standard Tray Size in mm / inches is 450 x 450 / 18 x 18
Details | Specifications |
Model | B-1100PC |
Trolley Size (W x D x H) in mm / inches | 800 x 660 x 1907 / 31.5 x 26 x 75 |
Maximum Temperature (°C / °F) | 50 / 122 |
Maximum Humidity (RH in % | 95 |
Installed Power (KW / HP) | 2.6 / 3.5 |
Voltage and Phase (KW / HP)ts / Phase / Hertz) | 230 / 1 / 50 |
External Dimensions (W x D x H) in mm / inches | 1250 x 1800 x 2200 / 50 x 71 x 87 |
Weight (Kgs) | 350 |
